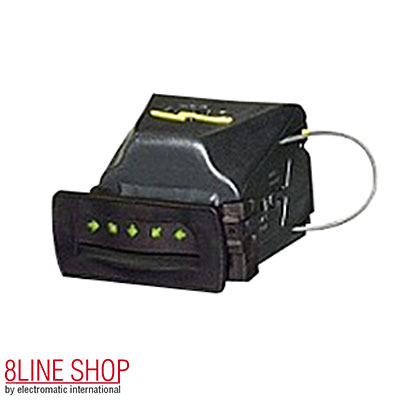

Pyramid Tech Curve Series Bill Acceptor

With a revolutionary note path protection design, the Curve’s state-of-the-art architecture provides the added layer of security demanded in certain settings.

• Mechanical anti-stringing design
• Dual-stage optical anti-stringing technology
• Simple setup with configuration card or PC
• 12VDC standard
• Lighted arrows on bezel
• High security against fraudulent bills
• Flash updates using a PC
• Pushbutton / LED on-board diagnostics
• Advanced diagnostics with PC
• Numerous interfaces available – pinouts compatible with other manufacturers (see below)
• Bills up to 85mm wide accepted with various bezel options
• Automatic self-calibration – never requires user calibration

Product Specifications

Operating Voltage:

12 VDC (+/- 10%) standard.

Operating Currents

Idle: 50 mA Accepting: 1.0 A Stalled: 3.0 A.

Operating Temperature

0C – 60C, 90 % non-condensing humidity.

Acceptance Rate

Greater than 95%, including second time insertion of a rejected note.

Acceptance Speed:

Approx. 20 notes per minute.

Sensor Array:

10 Optical Sensors.

Bills Accepted:

Up to 14 notes in all four directions (56 faces).

Net Weight:

1.3 lbs./0.59 kg.

Warranty:

2 years, parts and labor
