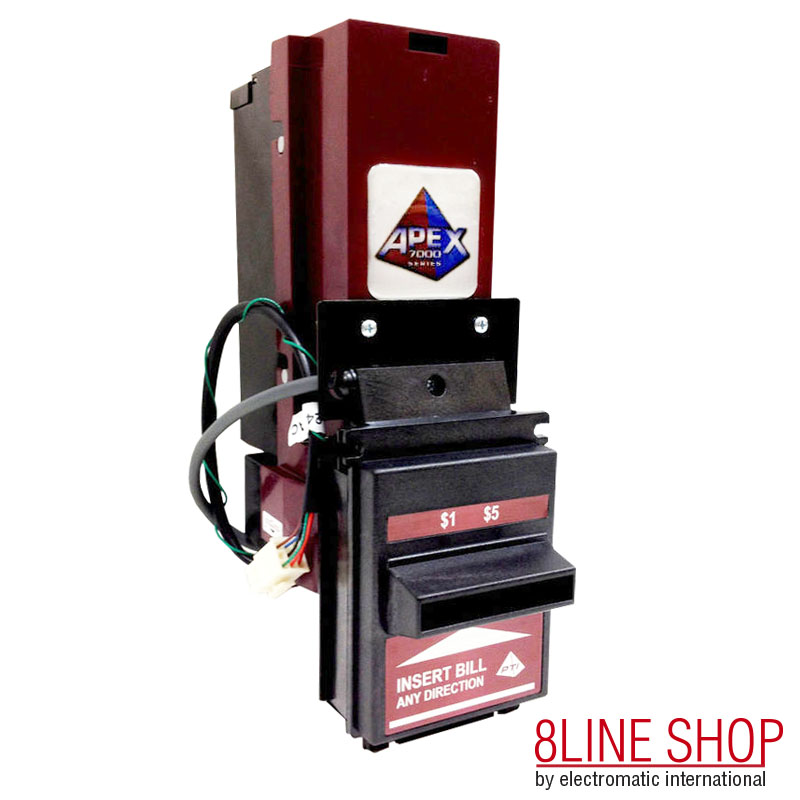

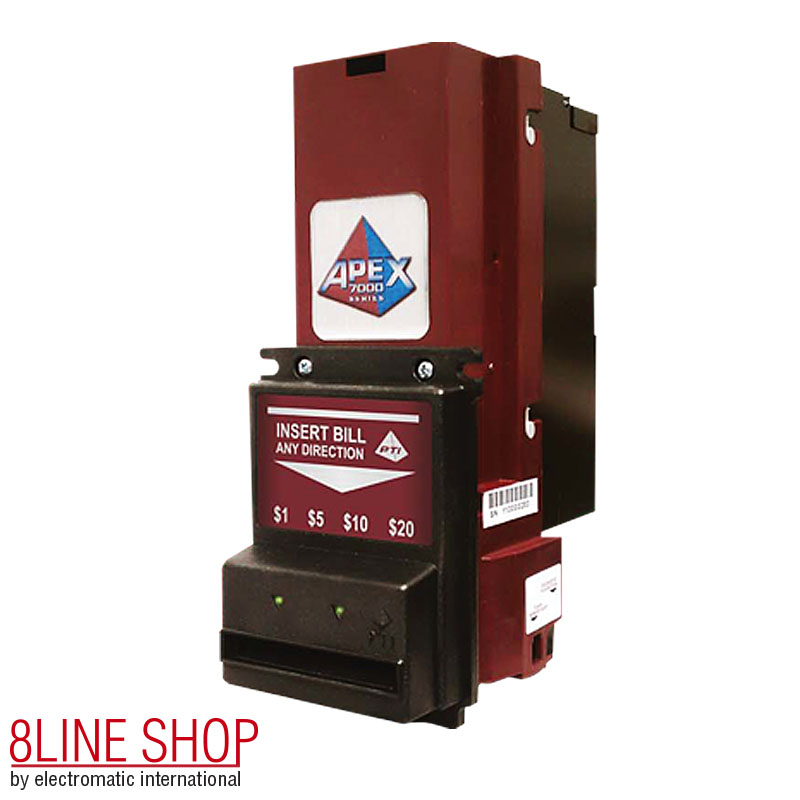

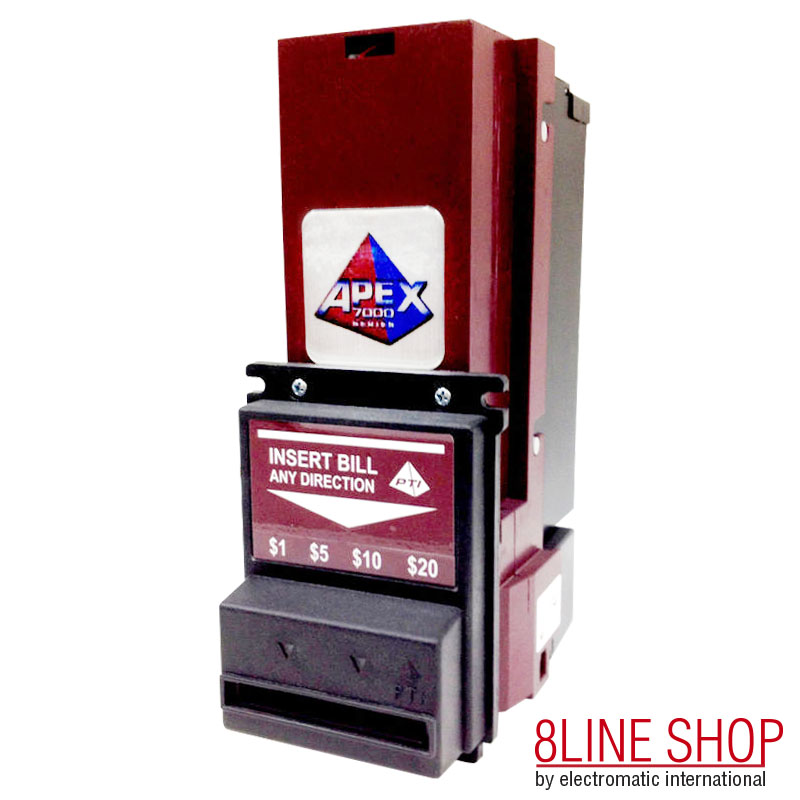

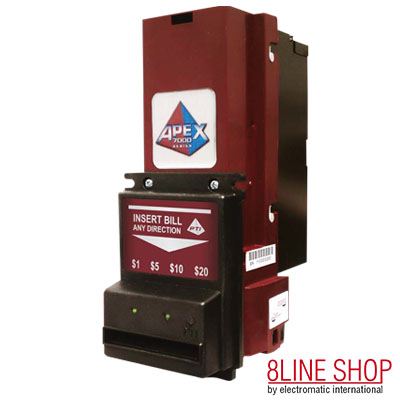

Pyramid Tech Apex 7000 Series Bill Acceptor

The Apex 7000 makes the best bill acceptor in the industry even better.  The Apex 7000 harnesses the reliability of the Apex 5000 and adds customer driven improvements including dip switches for ease of use.

• Lighted arrows on bill entry mechanism capture interest and increase usage
• High security against fraudulent bills
• Flash updates using a PC
• Multiple interfaces available (see below)
• Pinouts compatible with other manufacturers
• Dual-stage optical anti-stringing technology
• 12VDC standard or optional 120VAC internal power supply
• Bills up to 72mm wide accepted
• Automatic self-calibration; no user calibration required

Product Specifications

Operating Voltage:

12 VDC (+/- 10%) standard, optional 120 VAC or 24 VAC supply available.

Operating Currents

.Idle: 180 mA Accepting: 500 mA Stalled: 1.50 A.

Operating Temperature

.0C – 60C, 90 % non-condensing humidity.

Acceptance Rate

Greater than 95%, including second time insertion of a rejected bill.

Acceptance Speed:

Approx. 20 bills per minute.

Sensor Array:

.8 Optical Sensors, one Magnetic Head. Mag. Head is standard on $50, $100 acceptor only.

Bills Accepted:

Up to 12 bills in all four directions.

Net Weight Stackered Model:

2.3 lbs./1.04 kg.

Net Weight Stackerless Model:

1.0 lbs./0.45 kg.

Warranty:

2 years, parts and labor (see Warranty Section)



Model Variations:

Model:

7200 - No Mag. Head ($1,$5 bills or 2 bills for foreign applications).
7400 - No Mag. Head ($1-$20 for US model and some foreign models)
7600 - Mag. Head ($1-$100 for US model, full note set for foreign model)

Bezels:

7X00 - #0- Standard Bezel
7X01 - #1- “Coinco” Style Bezel
7X02 - #2- “VFM” Style Bezel

Type:

S- Stackerless
U- Upstacker
D- Downstacker

Cashbox:

N- None (Stackerless only)
2- 200 Bill Cassette
5- 500 Bill Cassette
7- 700 Bill Cassette
1- 1000 Bill Cassette
A- 200 Plastic Bill Cassette
C- 500 Plastic Bill Cassette
D- 500 Plastic Lockable Cassette

Power Supply/Communication Options:

1- 12 VDC (No harness supplied)
3- 120 VAC high level operational supply (Ships with 9-pin AC harness.)
4- MDB Option (Ships with MDB harness)
6- IGT ID022 (Ships with IGT ID022 Harness)
7- Atronic Harness (Minor cabinet modification necessary)
8- 12VDC Rear Exit Harness (Used in tight side to side mounting for 12VDC unit only)
9- 24 VAC Version. (Ships with 9-pin 24 VAC harness)

Country Code:

Follows ISO three (3) digit Country Code- Example USA = United States
