Pyramid Technologies Apex 5400 Bill Acceptor



Pyramid Technologies Apex 5400 Bill Acceptor

  • Accepts US $1, $5, $10, & $20 bills, including new currency
  • Lighted arrows on bezel and bill entry area
  • High security against fraudulent bills
  • Dual-stage optical anti-stringing
  • 12VDC standard or optional 120VAC internal supply
  • High acceptance rate: 95% or greater
  • Acceptance Speed: Approximately 20 bills per minute
  • Pushbutton/LED on-board diagnostics
  • Automatic self-calibration, unit will never require user calibration
  • Various bezels available with pin-outs that are compatible with other manufacturers
  • Warranty: 2-Years, parts and labor

Contact Us

954.920.6460 / 800.564.4735

Sales@8lineshop.com



Call For Pricing

Full Description

Apex 5400 Bill Acceptor

The Pyramid Technologies, Inc. (PTI) Apex Series bill acceptors are designed for indoor use in the amusement, gaming, lottery and kiosk markets. The Apex 5400 acceptors can accept: $1, $5, $10 and $20 bills,

Lighted arrows on bezel and lighted bill entry area.
High security against fraudulent bills.
Flash downloadable software using a PRO1 handheld programmer or Windows PC.

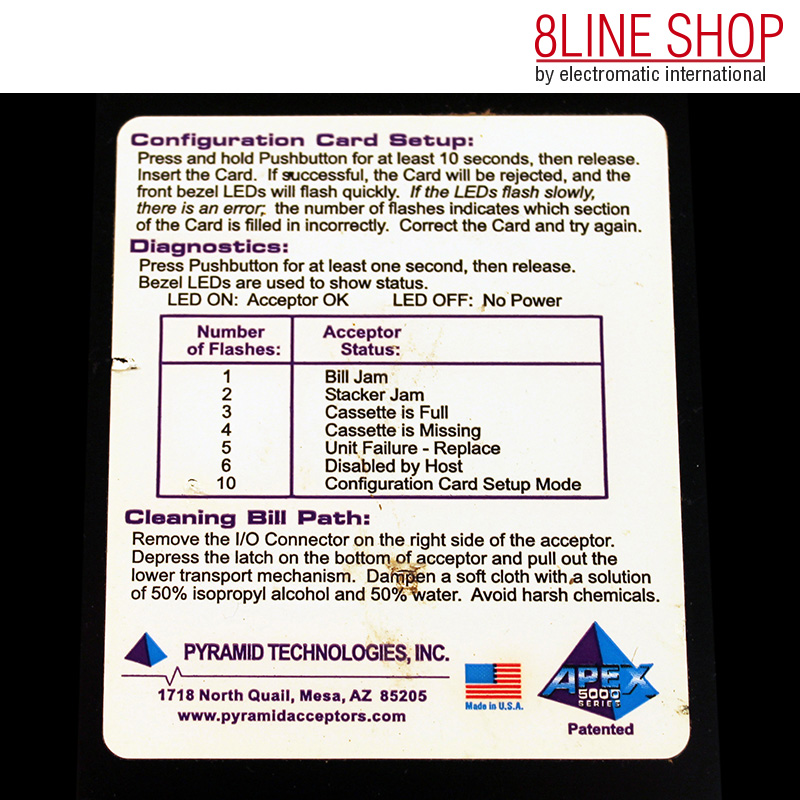

On-board pushbutton/LED and advanced diagnostics via PC.
Many interfaces available: Pinouts compatible with other manufacturers’ bill acceptors.
Dual-stage optical anti-stringing.
Simple configuration and setup (including DIP Switch Configuration on Apex 7000).
12 VDC (+/- 10%) operation is standard. Optional 120 VAC operation available.
Removable bill path for easy cleaning.
Can handle bills up to 72 mm wide for foreign applications.
200, 500 and 1000 bill cassettes available (stackered model).
Auto-calibration - Never needs to be calibrated.

Product Specifications

Operating Voltage: 12 VDC (+/- 10%) standard, optional 120 VAC or 24 VAC supply available.
Operating Currents: Idle: 180 mA Accepting: 500 mA Stalled: 1.50 A.
Operating Temperature: 0C – 60C, 90 % non-condensing humidity.
Acceptance Rate: Greater than 95%, including second time insertion of a rejected bill.
Acceptance Speed: Approx. 20 bills per minute.
Sensor Array: 8 Optical Sensors, one Magnetic Head. Mag. Head is standard on $50, $100 acceptor
only.
Bills Accepted: Up to 12 bills in all four directions.
Net Weight: Stackered Model……………………….. 2.3 lbs./1.04 kg.
Stackerless Model……………………… 1.0 lbs./0.45 kg.
Warranty: 2 years, parts and labor (see Warranty Section).

PRO-1 Handheld Programmer PRO-1

The PRO-1 makes it easy to update Apex 5000 Bill Acceptors. (A PRO-2 programmer is currently under development to support both Apex 5000 and 7000 Models.) Simply pre-load the PRO-1 with the desired 2 firmware version, plug it into the Apex, and the update happens automatically. The PRO-1 is powered by the bill acceptor when connected, so there is no need for a battery or power supply.

USB Flash Download Cable

The USB Flash Download Cable is used to update bill acceptors with new firmware via Windows PC, and perform Configuration and Diagnostic functions using the Acceptor Tools software (free download from http://www.pyramidacceptors.com).

Wall Plug Harness

For acceptors with the 120VAC power supply, this will adapt the 9-pin connector to a wall plug to power the acceptor using a standard 120VAC wall outlet.

Acceptor I/O Harness, Generic

This is an 18-pin harness to interface to the Apex bill acceptor I/O. All 18 wires are present. Harness is 36” long.

HSV-300™ Compatible I/O Harness

This harness plugs into our 18-pin I/O connector on the Apex bill acceptor and allows the user to connect the acceptor directly to a harness originally intended for an HSV-300 acceptor. This harness is a seven (7) pin connector and is 6” long

Flash Download (Palm) Interface Harness

This harness is used to interface a Palm to the Apex bill acceptor. This harness is used for acceptor diagnostics and flash software downloading. Please visit http://www.pyramidacceptors.com and go to the “Download” section to download the Palm program. For complete Palm documentation, see the “Support “ section of the web site. These files are also available upon request.

Adapter Bracket Kit

This kit mounts the Apex bill acceptor to a wood door, and comes with all necessary mounting hardware.

RS-232 Communication Harness

This harness is needed for true RS-232 communication. The harness comes with a DB9 connector on 36” of cable, as well as a hard drive connector on 36” of cable to obtain 12 VDC power for the bill acceptor from the PC. Order Document “RS232” for more details (or visit our web site). The “Download” section of our web site has a demo program which you can download to try out the PC interface.

USB Communication Harness

This harness is needed for USB communication. The harness comes with a USB connector on 36” of cable, as well as a hard drive connector on 36” of cable to obtain 12 VDC power for the note acceptor from the PC. Order Document “RS232” for more details (or visit our web site). The

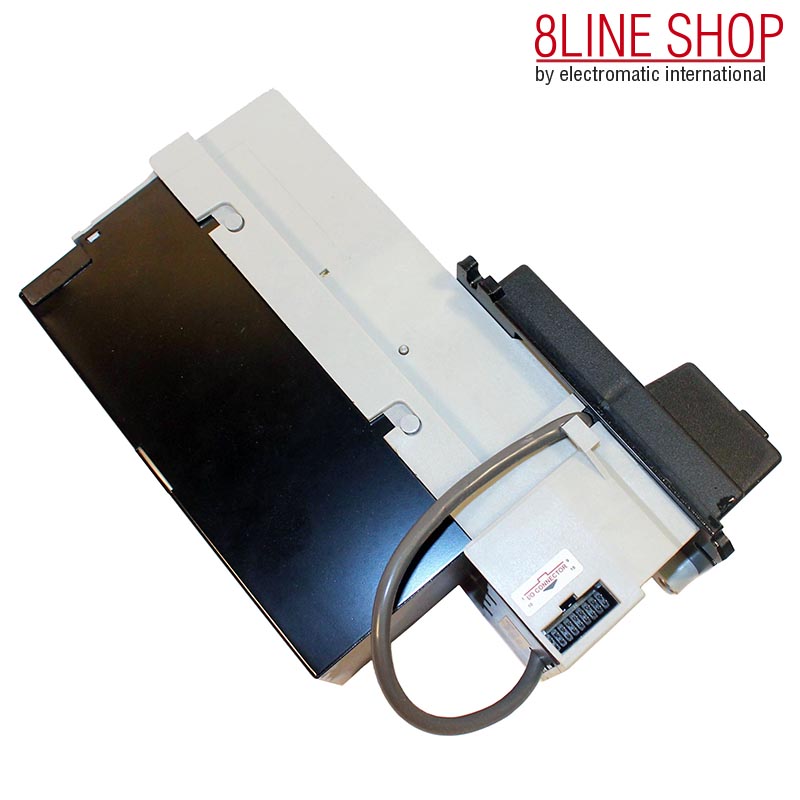

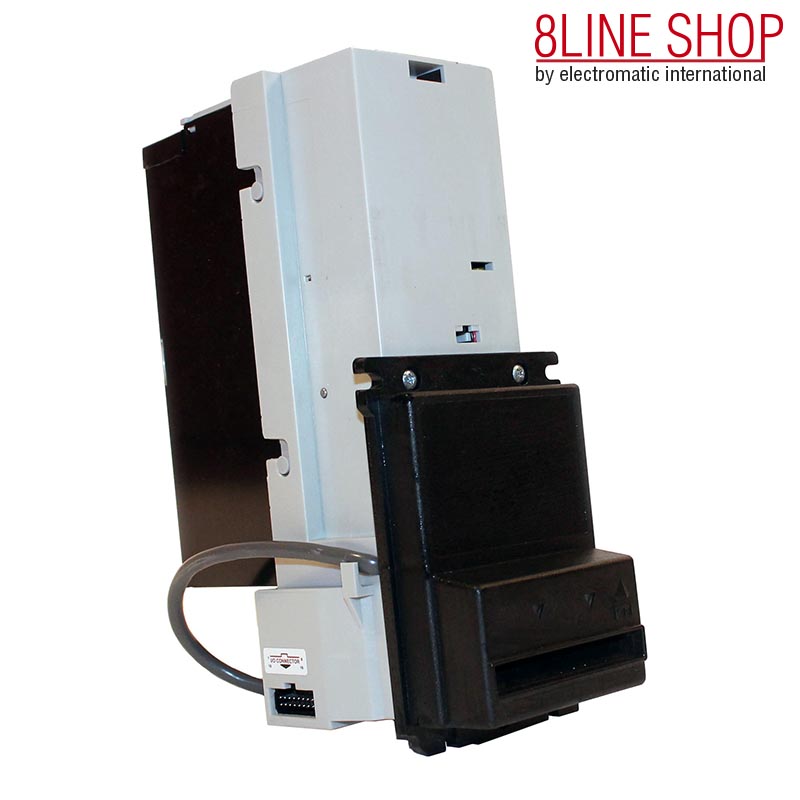

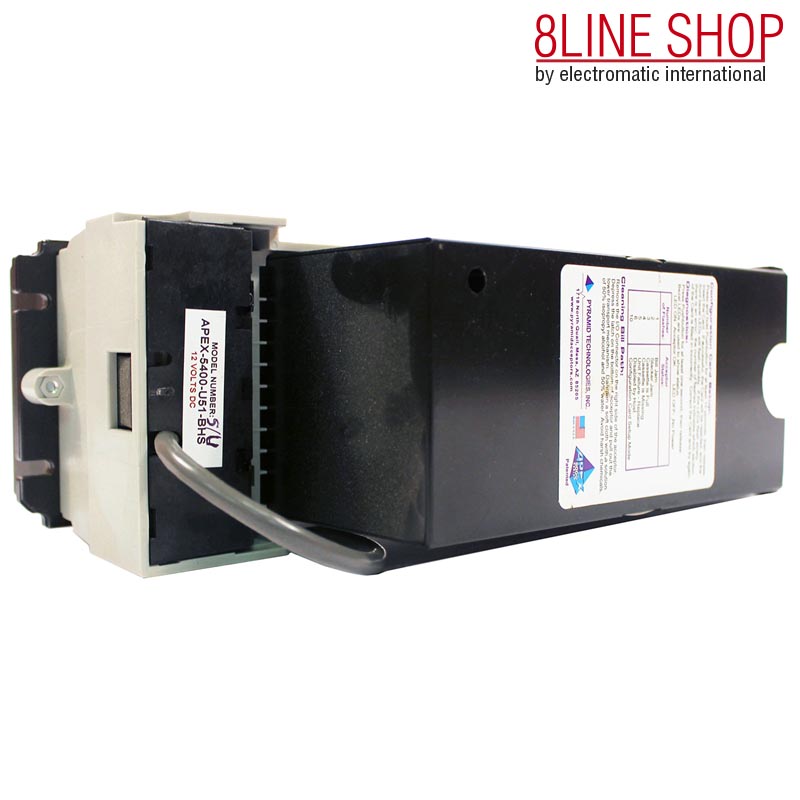

More Photos of the Pyramid Technologies Apex 5400 Bill Acceptor
