ICT A7/V7 Bill Acceptor


ICT A7/V7 Bill Acceptor

  • Accepts US $1, $5, $10, & $20 bills, including new currency
  • Four way bill insertion acceptance
  • High security module with bill box
  • Auto-calibrating
  • Numerous interfaces available
  • High acceptance rate: 96% or evengreater
  • Outstanding recognition
  • Easily install and maintainance
  • Warranty: 1-Year

Contact Us

954.920.6460 / 800.564.4735





Call For Pricing

Full Description

ICT A7/V7 Bill Acceptor

The A and V series validators are ruggedly built, low cost alternatives suitable for any vending or amusement based application. They are also the operators choice on tens of thousands of low item value redemption machines. This unit has proven to be a workhorse and ideal solution for most amusement and vending applications.

Product Specifications

Bill Insertion:

4 way acceptance


Pulse or MDB (Multi-Drop Bus)

Bill Box Capacity:

300 bills ( 200~300 )
500 bills ( 300~500 )
800 bills ( 750~850 )
1000 bills ( 1000~1140 )

Acceptance Speed:

Appox. 3 seconds ( including bill stacking )

Power Sources:

12V DC, 3Amp
34V DC( 24V~45V) or 24V AC,2Amp
110V AC, 60HZ, 0.5Amp

Power Consuption:

Max 50 Watts

Acceptance Rate:

96% or more
The second acceptance is included in the acceptance count.
The following bills are excluded:
a. Incomplete bills such as extremely dirty, wetted, broken or wrinkled ones.
b. Bills folded at a corner or side.
c. Incorrect-made bills.


Aprroximately 2kg (Shipping)


View PDF File (right-click, save targat as: to download)

Dipswitch Settings:

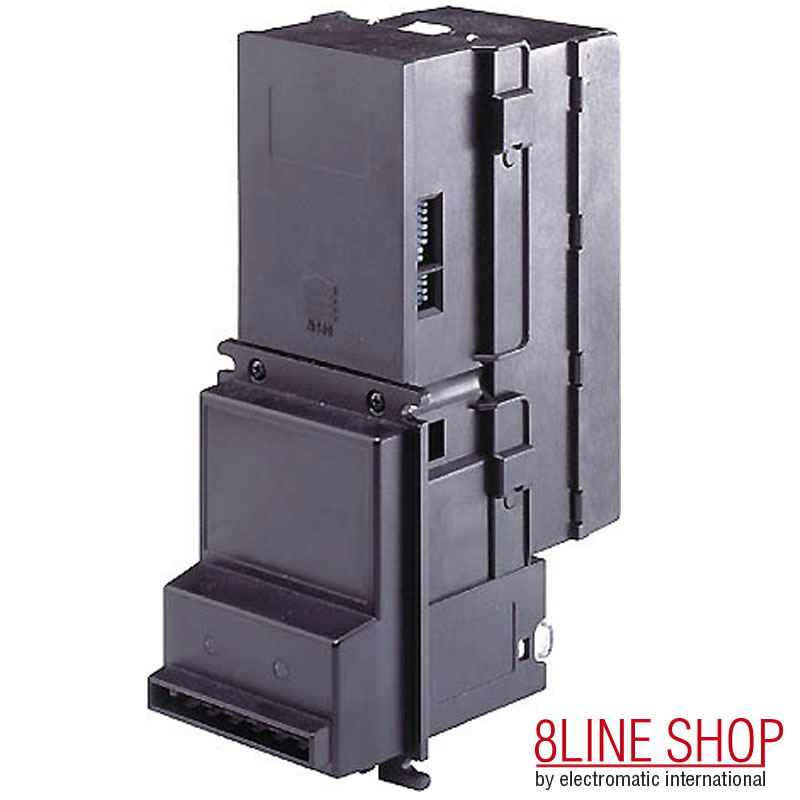

More Photos of the ICT A7/V7 Bill Acceptor
